Features

International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

Adopt human-machine operation system.

Automatically displaying device for trouble, speed and finished products counting.

Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

No products not suction leaflet, no leaflet not suction carton.

Automatic detection and rejection device for lacking blister goods and leaflets.

Protecting automatically for overloading.

Stable performance , easy operation.

Parameter

Item		Technical parameters
Encasing speed		260boxes/min
Box	Quality requirement	250-350g/M² [Base on carton size]
	Dimension range(L×W×H)	(70-180)mm×(35-80)mm×(14-50)mm
Leaflet	Quality requirement	60-70g/M²
	Unfolded leaflet specification(L×W)	(80-250)mm×(90-170)mm
	Fold range(L×W)	[1-4]Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	160-200L/min
Power supply		380V 50HZ
Motor power		5kw
Machine dimension(L×W×H)		4800mm×1600mm×1860mm
Machine weight		3000kg

Machine Details

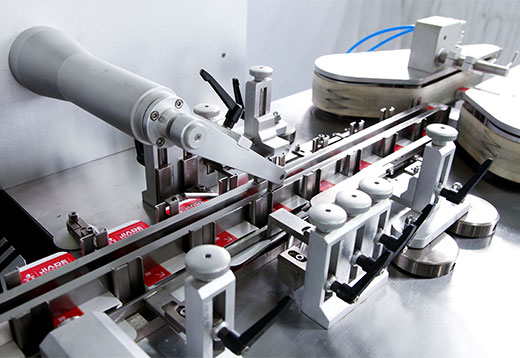

High-Speed Servo Feeding System

The machine features a swing-tracking servo feeding system, offeringfaster speed and higher precision compared to conventional fxedfeeding devices.lt supports single-piece and multi-piece feeding.ensuring accurate material placement into the conveyor chain slotsfor improved effciency.

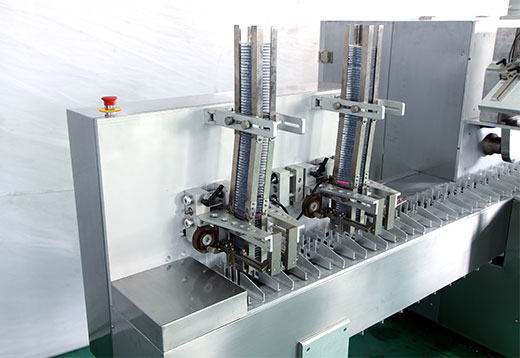

Dual-Planetary Wheel CartonOpening Mechanism

Equipped with a four-segment dual-planetary wheel outward-opening design, this system outperforms traditional inward-openingmechanisms, particularly for wider carton sizes, by preventingcarton collisions and ensuring smooth operation. Additionally, thedual pre-forming mechanism guarantees complete cartonexpansion,enhancing packaging quality.

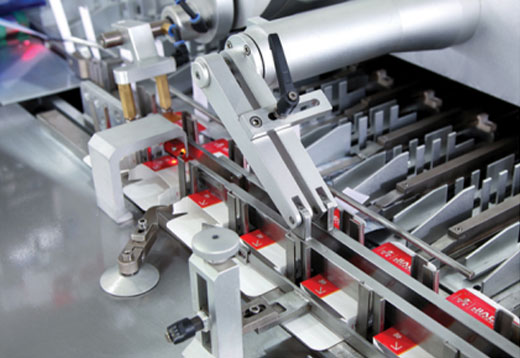

Optimized Pusher Mechanism &Safety Features

The rear pusher mechanism frees up front operating space, makingmachine operation and maintenance more convenient andergonomic.Product size adjustments are simplifed with an indexedhandwheel, allowing for quick and easy changeovers. Moreover,the main transmission system includes overload protection**ensuring both machine and operator safety.

Intelligent Integrated Packaging System

This high-performance machine integrates mechanical, optical,electrical, and pneumatic technologies, enabling automatedcartoning for aluminum-plastic blister packs, bottles, tubes, softaluminum packs, and sachets.lt can also seamlessly integrateinto packaging production lines, catering to industries such aspharmaceuticals, personal care, and food processing.
