JDZ-180 Automatic Continuous Cartoning Machine
JDZ-180

Continuous Cartoning Machine

High Speed Cartoning Machine is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “standard to manufacture. With high efficiency, high performance production capacity, leaflet folding and conveying, carton.

opening and forming, posterior pushing structure and related technology all reach Europe and USA standards; Simple design and posterior continuous pushing structure makes operation and maintenance more convenient;

three equal rotation opening carton and under twice pre-forming device to ensure that carton open and form completely.This model is automatic high speed continuous cartoning machine which is high performance product incorporates

pneumatic-photo-electro-mechanic.

Send Your Inquiry more
Features

International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

Adopt human-machine operation system.

Automatically displaying device for trouble, speed and finished products counting.

Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

No products not suction leaflet, no leaflet not suction carton.

Automatic detection and rejection device for lacking blister goods and leaflets.

Protecting automatically for overloading.

Stable performance , easy operation.

Parameter

Item

Technical parameters

Encasing speed

180boxes/min

Box

Quality requirement

250-350g/M²[Base on carton size]

Dimension range(L×W×H)

(70-165)mm×(35-80)mm×(14-50)mm

Leaflet

Quality requirement

60-70g/M²

Unfolded leaflet specification(L×W)

(80-250)mm×(90-170)mm

Fold range(L×W)

[1-4]Fold

Compressed air

Working pressure

≥0.6mpa

Air consumption

160-200L/min

Power supply

380V  50HZ

Motor power

4.5kw

Machine dimension(L×W×H)

3650mm×1560mm×2040mm

Machine weight

1750kg

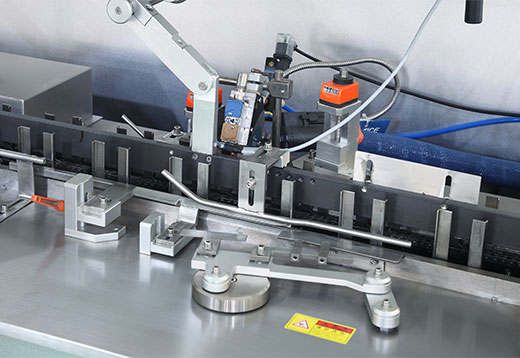

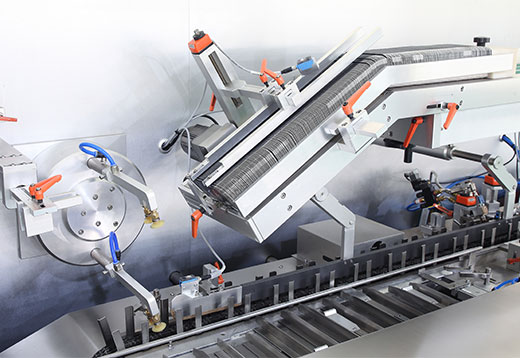

Machine Details
