Features

International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

Adopt human-machine operation system.

Automatically displaying device for trouble, speed and finished products counting.

Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

No products not suction leaflet, no leaflet not suction carton.

Automatic detection and rejection device for lacking blister goods and leaflets.

Protecting automatically for overloading.

stable performance , easy operation.

Parameter

Item		Technical parameters
Encasing speed		450 boxes / min
Box	Quality requirement	250-350g / M² [Base on carton size]
	Dimension range(L×W×H)	(70-180)mm × (35-80)mm × (14-50)mm
Leaflet	Quality requirement	60-70g/M²
	Unfolded leaflet specification(L×W)	(80-250)mm × (90-170)mm
	Fold range(L×W)	[1-4]Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	160-200L/min
Power supply		380V 50HZ
Motor power		4.5kw
Machine dimension(L×W×H)		4800mm×1800mm×2000mm
Machine weight		5000kg

Machine Details

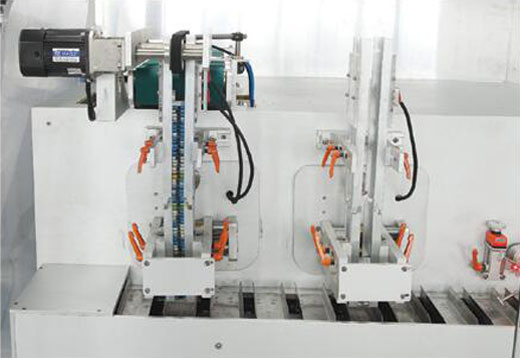

High-Speed Servo Feeding System

The machine features a swing-tracking servo feeding system, offering faster speed and higher precision compared to conventional fixed feeding devices. It supports single-piece and multi-piece feeding, ensuring accurate material placement into the conveyor chain slots for improved efficiency.

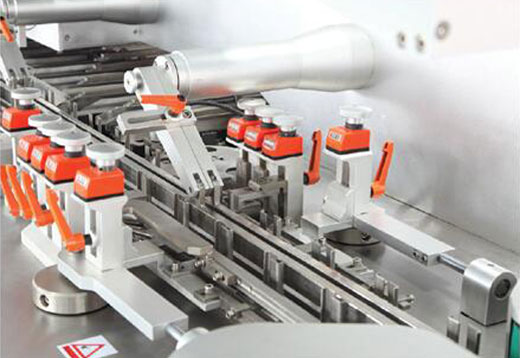

Optimized Pusher Mechanism & Safety Features

The rear pusher mechanism frees up front operating space, making machine operation and maintenance more convenient and ergonomic. Product size adjustments are simplified with an indexed handwheel, allowing for quick and easy changeovers. Moreover, the main transmission system includes overload protection**, ensuring both machine and operator safety.

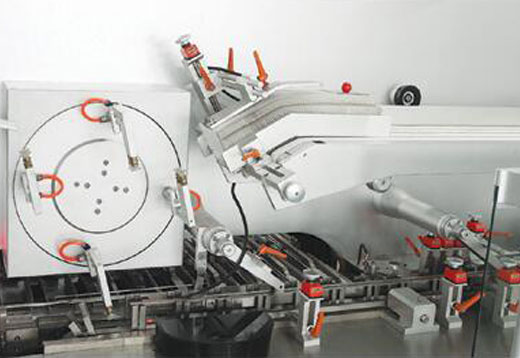

Dual-Planetary Wheel Carton Opening Mechanism

Equipped with a four-segment dual-planetary wheel outward-opening design, this system outperforms traditional inward-opening mechanisms, particularly for wider carton sizes, by preventing carton collisions and ensuring smooth operation. Additionally, the dual pre-forming mechanism guarantees complete carton expansion, enhancing packaging quality.

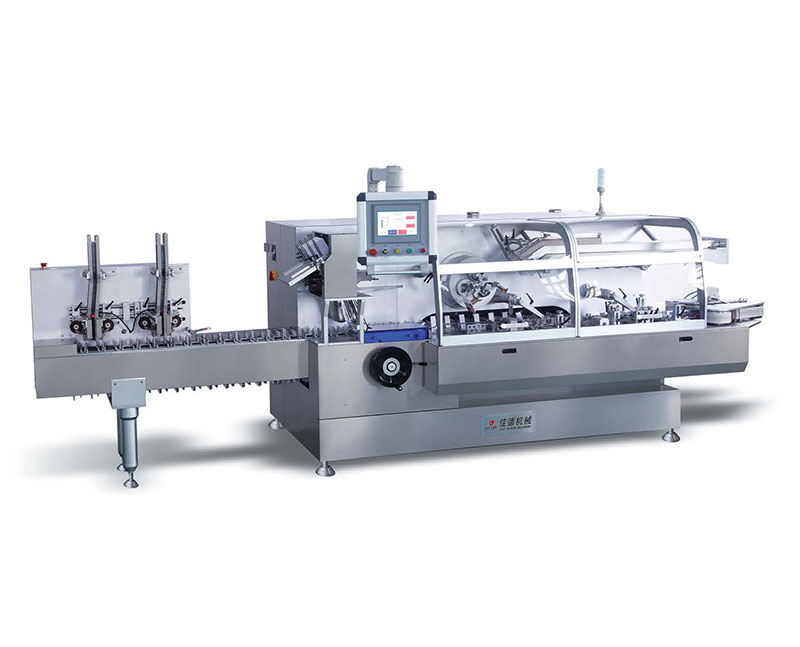

Intelligent Integrated Packaging System

This high-performance machine integrates mechanical, optical, electrical, and pneumatic technologies, enabling automated cartoning for aluminum-plastic blister packs, bottles, tubes, soft aluminum packs, and sachets. It can also seamlessly integrate into packaging production lines, catering to industries such as pharmaceuticals, personal care, and food processing.
