JD-DPH-260 High speed blister packing machine is suitable for blister packing of capsules, tablets, chewing gums, candies and similar shapes of hardware, electronic components, medical linstruments and food. It adopts flat pressure forming to form strong and average blisters, roller type mesh sealing to ensure reliable sealing. The machine is equipped with batching system, embossing device and horizontal boundless punching to achieve high production capacity and greatly save packing material.
Photocell register device.

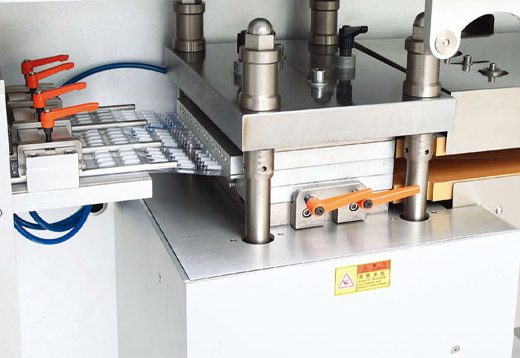

More stable forming device, more reasonable structure.
Fast mould change, simple to set up, convenient to debug.
Full servo drive system.

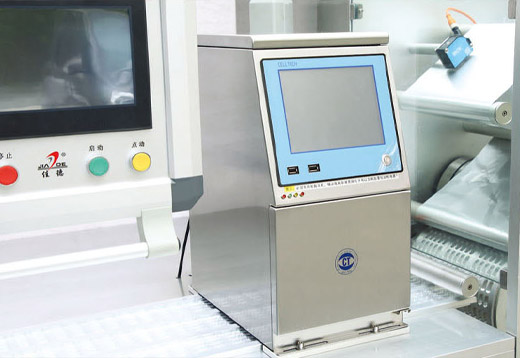

Intelligent PLC control, touch screen operation.

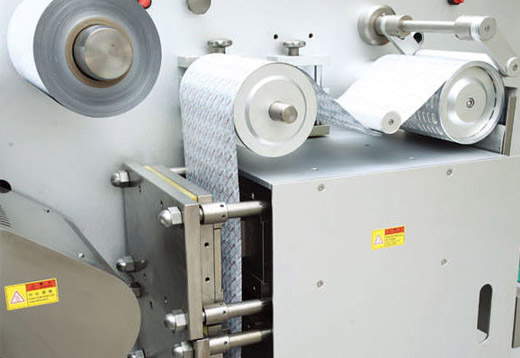

Easy replace to change PVC, aluminum foil.
| Max. Punch Frequency | 150 Stoke/min (or 9.5m) |
| Max. Forming depth | 12mm |
| Max. Forming area | 180x250mm (LxW) |
| Standard PVC hard sheet | (0.25-0.35) x 260mm |
| Standard PTP Aluminum foil | 0.02x260mm |
| PVC roll diameter(OD) | <Φ380mm |
| PTP roll diameter(OD) | <Φ260mm |
| PVC & PTP hole diameter of roll | Φ68-75mm |
| Overall dimension (LxWxH) | 4550x1250x2115mm |
| Weight | 2200kg |
| Total power | 18kw 380v/ 50Hz (according to customer's requirement) |
