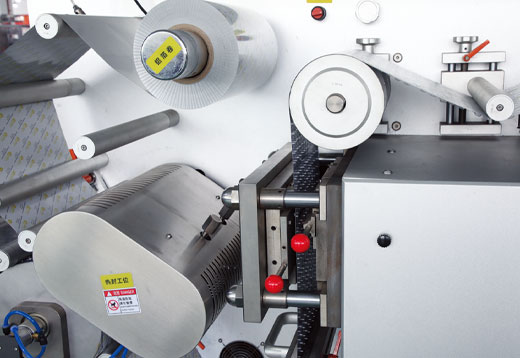

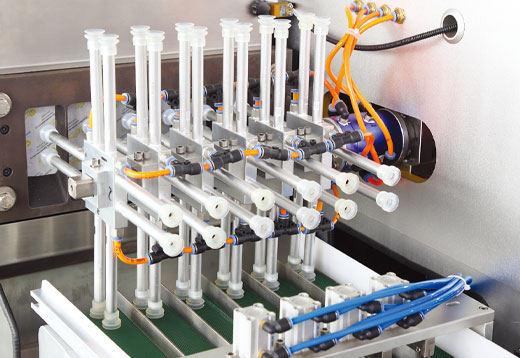

JD-DPH-320/320S is a high-speed blister packing machine that integrates flat forming and roller hot sealing. It is suitable for packing sugar-coated tablets, plain tablets, hard capsules, soft capsules, special-shaped tablets and other drugs of various specifications. It can also be used for packing of hardware, electronic components, medical instruments and food whose shapes are similar to those of the above-mentioned drugs.
| Max. Punch Frequency | 150 Stoke/min (or 9.5 m) |
| Max. Forming depth | 12mm |
| Max. Forming area | 180x310mm (LxW) |
| Standard PVC hard sheet | (0.25-0.35) x 320mm |
| Standard PTP Aluminum foil | 0.02x320mm |
| PVC roll diameter(OD) | <Φ380mm |
| PTP roll diameter(OD) | <Φ320mm |
| PVC & PTP hole diameter of roll | Φ68-75mm |
| Overall dimension (LxWxH) | 3550x1100x1950mm |
| Weight | 2200kg |
| Total power | 24kw380V/ 50Hz (according to customer's requirement) |
