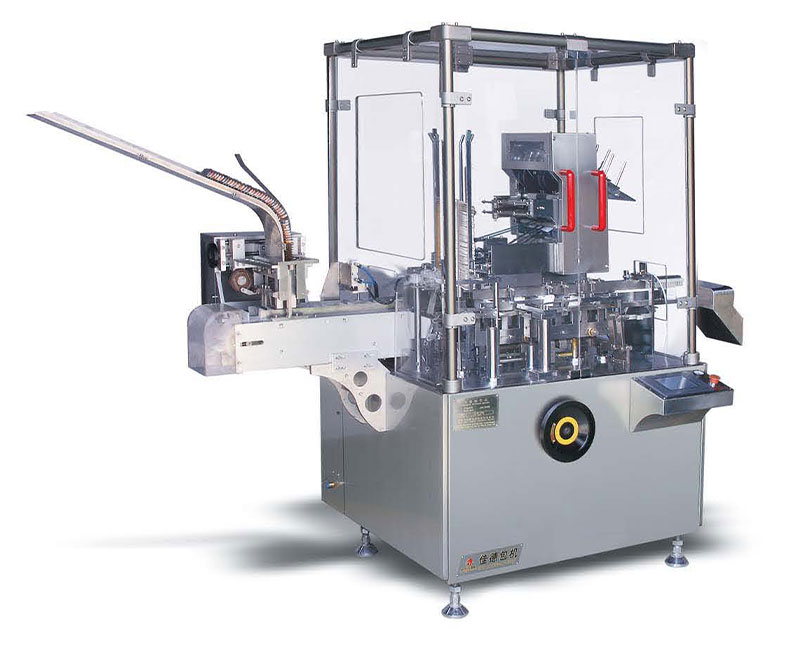

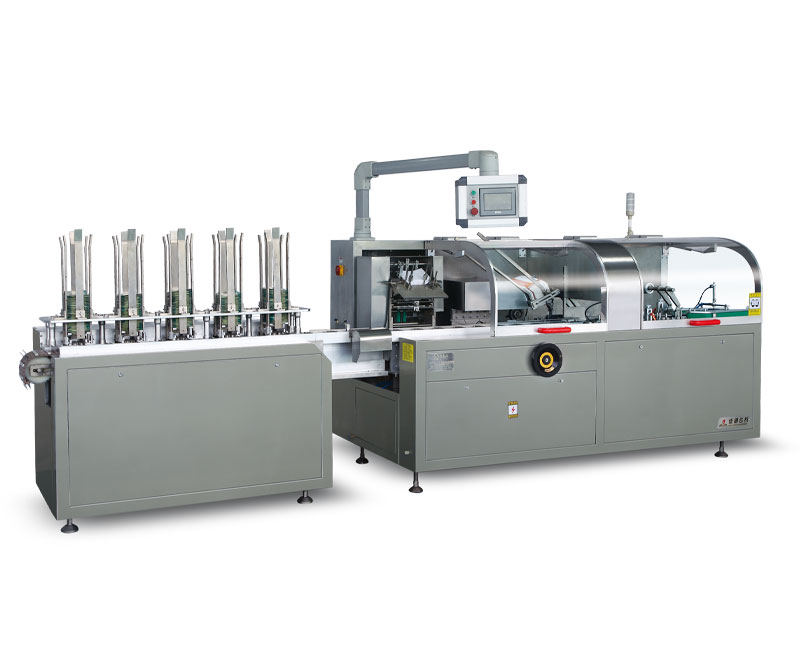

This equipment is new model developping base on integ-rated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable sachets into carton. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.

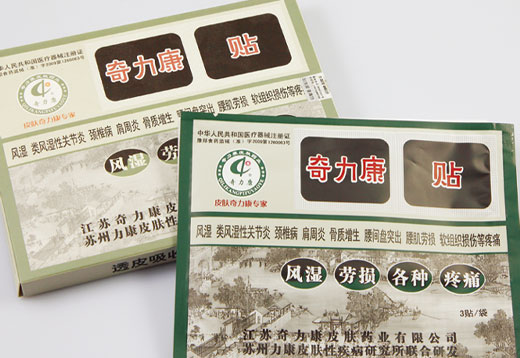

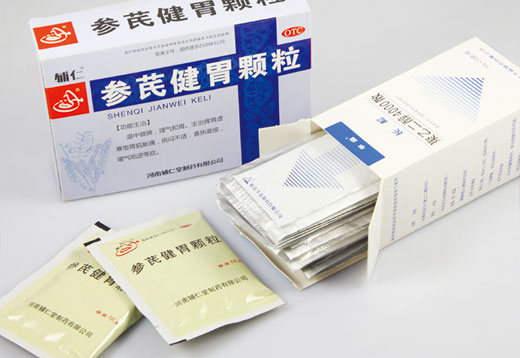

Applications: Is suitable for sachet, condom, adhesive bandage, soft ALU strip, plaster, coffee bag, face mask and similar product.
International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
Adopt human-machine operation system.
Automatically stop when machine is overload.
Automatically reject lacking of package product and leaflet.
Automatically display trouble, Alarm and count finished products.
Stable performance,operation is easy.
| Encasing speed | 30-120 Cartons/min | |
| Sachet quantity | 1-12bag (Base on sachet or pouch size) | |
| Carton | Quality requirement | 250-350g/m² Base on carton size |
| Dimension range (L×W×H) | (70-180)mm×(35-85)mm×(14-50)mm | |
| Leaflet | Quality requirement | 60-70g/m² |
| Unfolded leaflet specification | (80-250)mm×(90-180)mm | |
| Fold range | 【1-4】 Fold | |
| Compressed air | Working pressure | ≥0.6Mpa |
| Air consumption | 260-300L/min | |
| Power supply | 380V 50Hz | |
| Motor power | 4kw | |
| Machine dimension (L×W×H) | 3872mm×1260mm×1770mm | |
| Machine weight | About 1600kg | |
